Product Overview

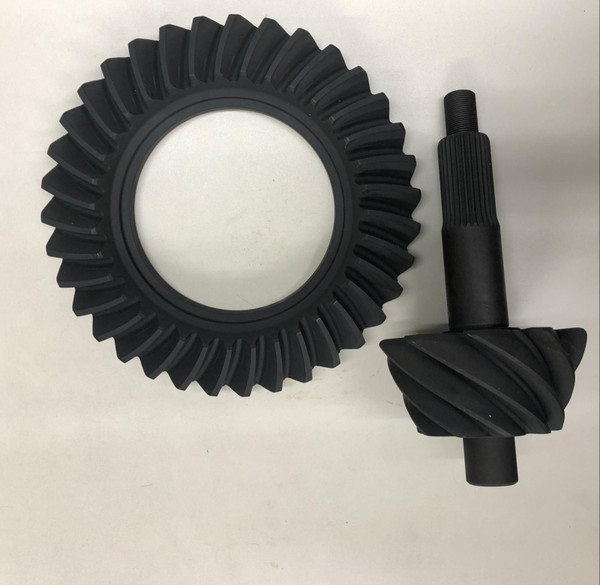

F890430 Motive Gear Ring & Pinion Gears Ratio: 4.30
Ring & Pinion Gears
- Ratio: 4.30
- Teeth: 43-10
Ford 9" Performance
Specifications:
- 10 Bolt 3rd Member
- Ring Gear Diameter: 9"
- 10-7/16" x 20 Right Hand Threaded Bolts
- Pinion Diameter: 1.313" 28-Splines
- No Case Breaks
- 8620 Material - Heat Treated
Applications:
- 1969-74 Australian Falcon GT, XW, XY, XA, XB
- 1969-74 Australian Fairlane ZC, ZD
- 1967-5/70 Bronco (28 Spl)
- 5/1970-86 Bronco (31 Spl)
- 1965-67 Comet/Cyclone
- 1967-5/70 Cougar (28 Spl)
- 5/1970-79 Cougar (31 Spl)
- 1986-87 E100/150
- 1968-74 E200
- 1964-86 F100/150
- 1957-5/70 Fairlane (28 Spl)
- 5/1970-71 Fairlane (31 Spl)
- 1957-5/70 Ford Full Size (28 Spl)
- 5/1970-79 Ford Full Size (31 Spl)
- 1957-5/70 Ford 1/2 Ton (28 Spl)
- 5/1970-86 Ford 1/2 Ton (31 Spl)
- 1969-5/70 Ford 3/4 Ton (28 Spl)
- 5/1970-74 Ford 3/4 Ton (31 Spl)
- 1975-80 Granada
- 1971-79 LTD II
- 1957-5/70 Mercury (28 Spl)
- 5/1970-79 Mercury (31 Spl)
- 5/1970-76 Montego (28 Spl)
- 5/1970-76 Montego (31 Spl)
- 1975-80 Monarch
- 1965-5/70 Mustang (28 Spl)
- 5/1970-73 Mustang (31 Spl)
- 1957-5/70 Thunderbird (28 Spl)
- 5/1970-79 Thunderbird (31 Spl)
- 1977-80 Versailles
Specifications:
Axle Type
Ford 9 in.
Cover Bolt Quantity
Dropout
Pinion Gear Tooth Quantity
10
Pinion Spline Count
28
Ring Gear Bolt Quantity
10
Ring Gear Diameter
9
Ring Gear Material
8620 Steel
Ring Gear Tooth Quantity
43
Ring Gear Rotation
Standard
Pinion Shaft Diameter
1.313 in (33.4 mm)
Manufacturer's Part Number:
F890430
Shipping Weight:
19.86
Package Height:
11.3
Package Depth:
5.2
Package Width:
15
