Product Overview

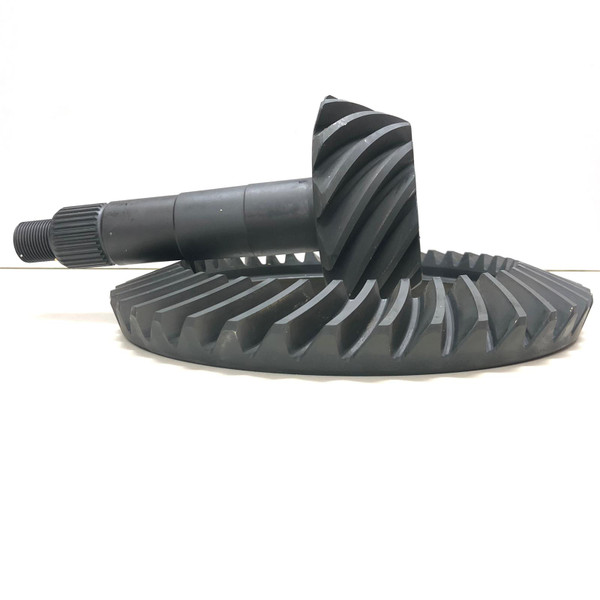

4900701 Richmond Gear GM 12 Bolt Ring & Pinion Gear Set Ratio: 3.42
GM 12 Bolt Ring & Pinion Gear Set
- Ratio: 3.42
- Teeth: 41-12
- Series: 3
12-Bolt 8.875" Truck
- 3 Series Fits 3.40 and Numerically Lower Ratio Carrier,
- 4 Series Fits 3.73 and Numerically Higher Carrier.
- 30 Spline 1.438" Diameter Pinion. .
Specifications:
Axle Type
GM 12 Bolt
Cover Bolt Quantity
12
Pinion Gear Tooth Quantity
12
Pinion Spline Count
30
Ring Gear Bolt Quantity
12
Ring Gear Diameter
8.875
Ring Gear Material
8620 Steel
Ring Gear Tooth Quantity
41
Ring Gear Rotation
Standard
Pinion Shaft Diameter
1.438 in (36.5 mm)
Ring Gear Bolts
12
Pinion Gear Teeth
12
Ring Gear Teeth
41
Ring and Pinion Ratio
3.42:1
Differential Carrier Break
3.40 and Lower
Cover Bolts
12
Carrier Series
3
